LHD Puma Tank Fitting Guide
Make the long bolts which are holding the gearbox crossmember are coming from out to in, if not change the direction. and tighten all. then fit the tank brackets on and fix it nuts provided.

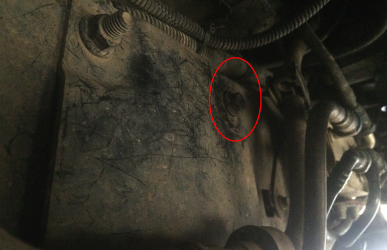

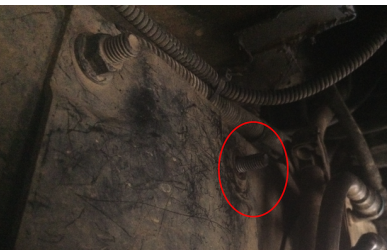

This photo show the direction we had to change into.

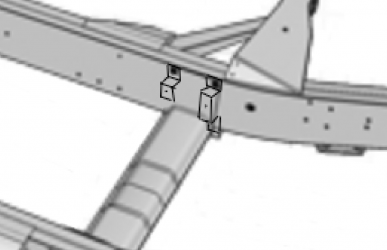

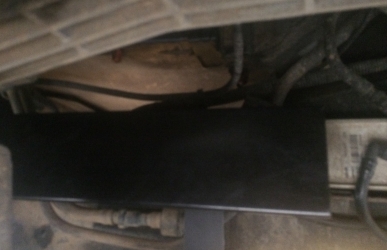

Brackets go onto the crossmember bolts then the tank onto it.

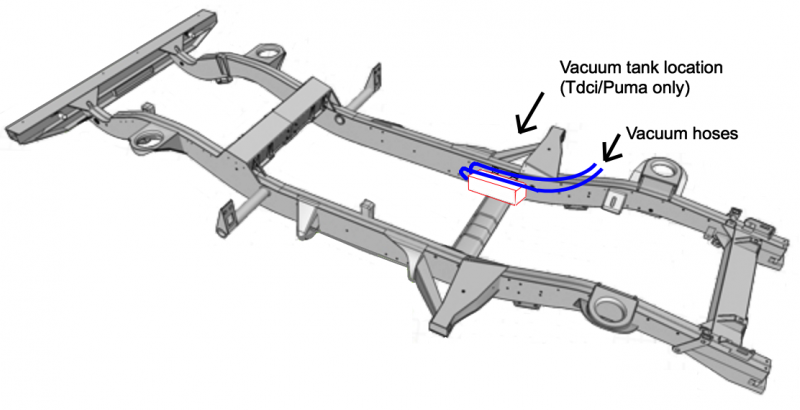

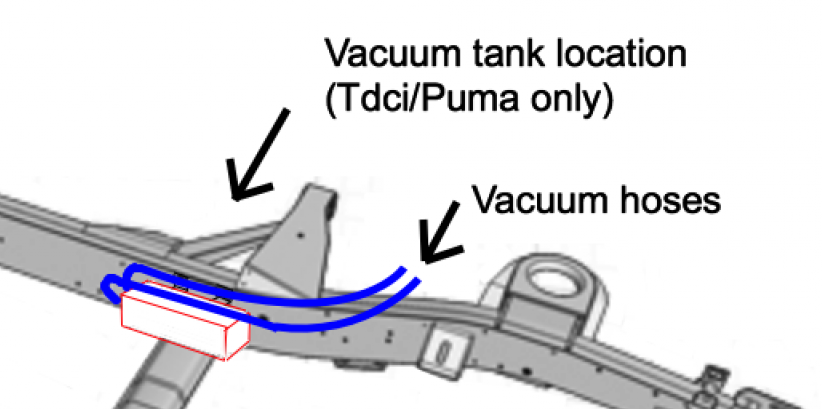

Make sure the tank oneway valve and the output are facing the back. And the to hoses are tucked in along the chassis and not next to the exhaust.
